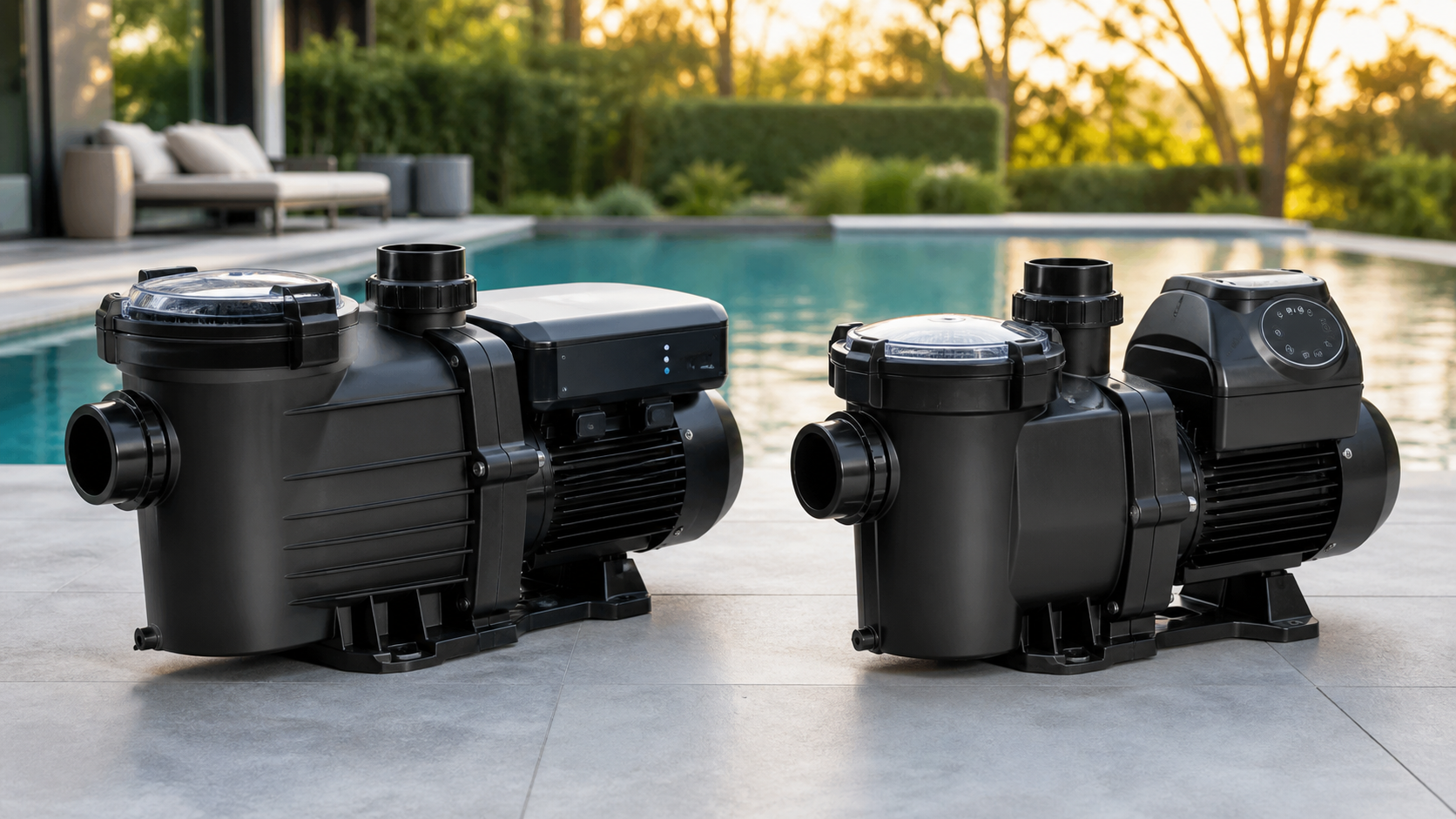

Pentair IntelliFlo3 VSF 3.0 HP and Hayward TriStar VS 950 compete for the same demanding equipment pad, but they solve the ownership problem differently. IntelliFlo3 emphasizes built-in Wi-Fi and sensorless flow control. TriStar VS 950 emphasizes high hydraulic efficiency, dual-voltage flexibility and integration with Hayward automation.
This 2026 comparison uses current US manufacturer specifications and documentation. We compare the exact 3.0 THP IntelliFlo3 and 2.70 THP TriStar VS 950 families. Model suffixes and bundled controls vary, so confirm the part number on every quote.
Affiliate disclosure: As an Amazon Associate, we earn from qualifying purchases. If you buy through links on this page, Smart Poolside may earn a commission at no extra cost to you. Recommendations remain editorially independent.
IntelliFlo3 vs. TriStar VS 950 specifications
| Specification | Pentair IntelliFlo3 VSF 3.0 | Hayward TriStar VS 950 |
|---|---|---|
| Total horsepower | 3.0 THP | 2.70 THP |
| Published WEF | 7.1 | 10.1/7.3 depending on voltage |
| Input voltage | 208–230 V | 115/230 V |
| Speed range | Variable speed plus sensorless flow control | 600–3450 RPM |
| Connections | 2, 2.5 or optional 3-inch arrangements | 2 x 2.5-inch union connections |
| Remote control | Built-in Wi-Fi with Pentair Pool app | Through compatible Hayward automation or VS Omni bundle |
| Local interface | Optional touchscreen | Pump controls; VS Omni adds control pad |
Specifications checked August 26, 2026. WEF is model- and voltage-specific. Consult the current label, manual and performance curve before installation.
Pentair IntelliFlo3 VSF: smart control and regulated flow
IntelliFlo3’s defining feature is sensorless flow control. Instead of operating only at a fixed RPM, it can target a selected flow and adjust speed as hydraulic resistance changes. That can help maintain required heater, sanitation or feature flow when a filter loads or valves change position.
Pentair builds Wi-Fi into the pump, allowing schedules, status and control through the Pentair Pool app. The pump can also connect two additional compatible pool products when equipped and configured appropriately. An optional touchscreen provides a more complete local interface.
The 3.0 HP pump carries a published WEF of 7.1, uses 208–230 volts and accepts several plumbing connection arrangements. It is especially attractive when IntelliCenter or other supported Pentair equipment already defines the automation strategy.
Choose IntelliFlo3 when
- You want direct app access without first purchasing a full automation panel.
- A heater or feature benefits from maintaining a target flow.
- The equipment pad is primarily Pentair.
- High flow and multiple operating modes are legitimate requirements.
Hayward TriStar VS 950: efficient high-output dual-voltage platform
TriStar VS 950 is the larger member of Hayward’s VS 900/950 family. Official literature lists 2.70 total horsepower, a 600–3450 RPM operating range and 115/230-volt capability. Published WEF values are 10.1/7.3 depending on voltage.
That WEF advantage is meaningful on the standardized test, but it does not prove lower energy use in every installation. A restrictive system or unnecessarily high schedule can erase the theoretical advantage. Compare the required duty point on both manufacturers’ curves.
TriStar is available as a pump or within VS Omni packages that add a touchscreen control pad, Wi-Fi and connections for selected additional equipment. A pump-only listing and a VS Omni bundle are not the same purchase.
Choose TriStar VS 950 when
- The existing supply or project design benefits from dual-voltage flexibility.
- The pool is centered on Hayward/Omni equipment.
- High published WEF is a priority and the duty point fits the curve.
- A VS Omni package can replace a separate basic automation purchase.
Hydraulic performance: the deciding calculation
Neither 3.0 THP nor 2.70 THP tells you how much water reaches the pool. Flow depends on total dynamic head, which rises as water moves through pipe, fittings, filter media, heaters, check valves and elevation changes.
The installer should identify at least three duty points:
- Filtration: the lowest practical flow that supports sanitation and skimming.
- Heating or chlorination: the minimum and maximum flow allowed by the equipment.
- Spa/features: the highest legitimate simultaneous demand.
Plot those points on each pump’s performance curves. Reject a pump that meets the spa demand only by exceeding safe pipe velocity or equipment flow limits.
Energy use and WEF
WEF expresses gallons moved per watt-hour under the Department of Energy test method. TriStar’s published WEF is higher, but operating energy is the product of actual watts and actual runtime. Variable-speed savings come primarily from running longer at an efficient lower speed, because hydraulic power rises steeply with speed.
Manufacturer “up to 90%” claims use stated comparison assumptions. Estimate annual cost with your electricity rate and proposed schedules. Record watts at commissioning and review the schedule after the first clean-filter cycle.
For practical scheduling, see how long to run a pool pump.
Automation and app control
IntelliFlo3 is the simpler standalone smart pump: Wi-Fi and Pentair Pool app access are built in. TriStar VS 950 becomes remotely accessible through the correct Hayward control arrangement, including compatible Omni systems or a VS Omni package.
A complete automation panel still adds capabilities that a smart pump cannot provide alone: shared pool/spa valve logic, several high-voltage circuits, complex lighting scenes and coordinated sanitation. Compare platforms in our smart pool controller guide.
Noise and placement
Both variable-speed pumps can be much quieter than a single-speed pump when operated at a lower RPM. Noise comparisons are unreliable without a stated speed, flow, distance and installation surface. Vibration can come from rigid plumbing, an uneven pad or a failing valve rather than the motor.
Provide manufacturer-required airflow and service clearance. Do not hide a pump in an unventilated box merely to reduce sound.
Retrofit fit and electrical work
| Check | IntelliFlo3 | TriStar VS 950 |
|---|---|---|
| Voltage | Existing circuit must support 208–230 V | Model supports 115/230 V; verify amperage and wiring |
| Plumbing centerlines | Several adapter/connection options | 2 x 2.5-inch unions |
| Control cable | Depends on Pentair automation and accessories | Depends on Hayward/Omni configuration |
| Network | Wi-Fi needed for app access | Network needed when using compatible Omni remote control |
| Local controls | Confirm whether optional touchscreen is included | Confirm pump-only versus VS Omni package |
Pool pumps involve water, line voltage, bonding and suction safety. Use qualified professionals and comply with current local code and manufacturer instructions.
Frequently asked questions
Which pump is more energy efficient?
TriStar VS 950 has the higher published WEF values. Actual energy use depends on the hydraulic duty point, voltage, speed schedule, filter condition and runtime. Size both pumps against the same system curve.
Does IntelliFlo3 need IntelliCenter?
No for basic built-in app scheduling and monitoring. A full automation system is needed when the pump must coordinate complex pool/spa valves, multiple circuits and broader equipment logic.
Does TriStar VS 950 include Wi-Fi?
Do not assume it does. Hayward sells different pump and VS Omni configurations. Verify the exact model number and included control hardware.
Can either pump replace a 1.5 HP single-speed pump?
Possibly, but replacement sizing must compare total horsepower, performance curves, pipe dimensions, voltage and the pool’s actual demand. A smaller variable-speed model may be more appropriate.
Which is better for a spa?
The pump that meets jet flow at the system’s total dynamic head without exceeding pipe and equipment limits. IntelliFlo3 has slightly higher total horsepower; that alone does not determine the better spa result.
Final verdict
IntelliFlo3 VSF wins for built-in connectivity, sensorless flow control and Pentair-centered automation. TriStar VS 950 wins for dual-voltage flexibility, strong published WEF and Hayward/Omni integration. If both satisfy the hydraulic design, choose the platform with better local service and the clearer equipment-wide control plan.
